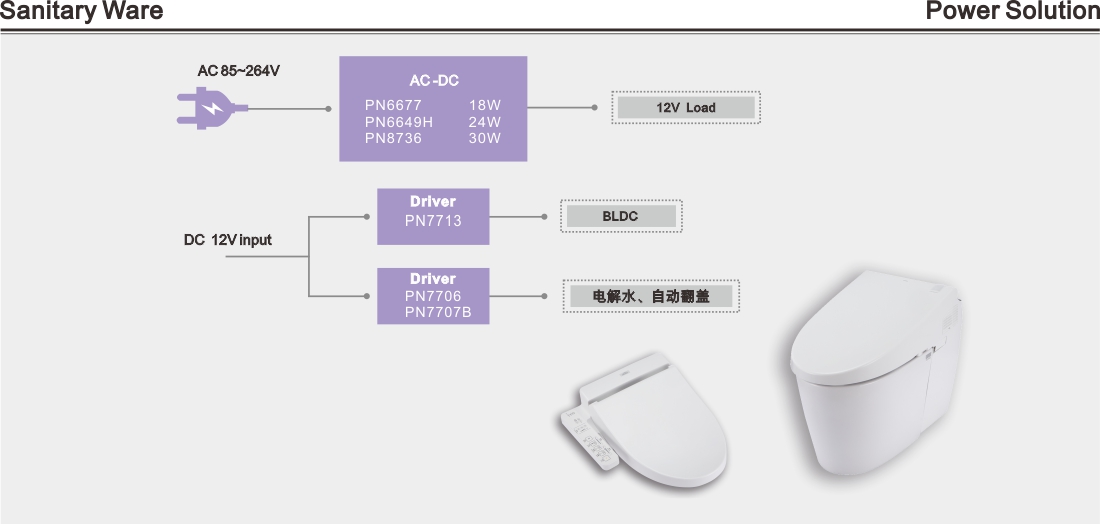

解决方案 Solution
| Product | Character | SW Voltage | Standby Power | RDS(on) | Adaptor Output Power | Open Frame Output Power | Frequency | Package | VDD Operation Voltage |
|---|---|---|---|---|---|---|---|---|---|
| PN6649H | PWM converter | 800V | <100mW | 2.3Ω | 18W | 30W | 45kHz | 9~35V | |
| PN6677 | PWM converter | 800V | <100mW | 2.5Ω | 10W | 24W | 45kHz | 9~35V | |
| PN8736 | PWM converter | 800V | <100mW | 2Ω | 18W | 24W | 45kHz | 9~35V |
| Product | Character | VOFFSET (max) | IO+/-(typ.) | Vin | Ton/Off(typ.) | Deadtime (typ.) | OUT phase | Package | Cross reference |
|---|---|---|---|---|---|---|---|---|---|
| PN7006 | High and low side driver | 300V | 450/900mA | 5.5V~20V | 220&90ns | - | LO/HO in phase with LIN/HIN | SOP8 DFN8 | - |
| PN7113 | High and low side driver | 600V | 3.0/4.0A | 10V~20V | 170&150ns | - | LO/HO in phase with LIN/HIN | SOP16 DIP16 | - |
| PN7707B | 2-Phase Bridge driver | 45V | 2.7V~30V | 400&200ns | 350ns | SOP8-PP | - |
